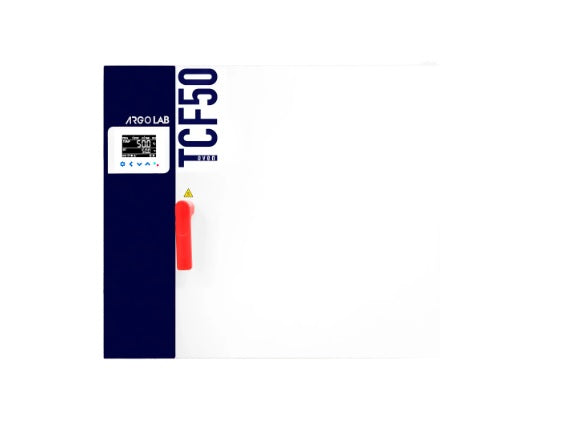

TCF 50 NEW Forced Convection Oven

Description

The TCF 50 NEW forced convection oven by ArgoLab is designed to ensure precise and uniform temperature control, ideal for laboratory applications. Thanks to adjustable forced ventilation on three levels, it ensures optimal heat distribution and reduced heating times. The intuitive interface, USB data logging, and advanced safety make it a reliable and efficient choice.

Main features

•
  Operating range: +10°C Ta … +300°C



•
  Backlit LED display for clear and immediate reading



•
  Data export and logging via USB flash drive



•
  Advanced programming:



  •
    8 storable programs with 8 steps each



  •
    Single-step basic program



  •
    Multi-step program up to 64 steps







•
  Adjustable ventilation on three levels:



  • High = 100%


  • Medium = 75%


  • Low = 50%





Advanced functions

•
  Simultaneous display of all operating parameters



•
  Visual and acoustic alarms that can be silenced by the operator



•
  Digital timer: from 1 minute to 99 hours and 59 minutes, with continuous operation option



•
  Delayed start to schedule the start of the heating cycle



•
  Safe temperature function for sample protection



•
  Work data logging: up to 2167 values, with USB download option



•
  Energy efficiency: reduced heating times and low energy consumption



•
  Safety class 3.1 (DIN 12880): fluid-expansion maximum temperature controller


Structure and Design

•
  Ø 5 mm pass-through hole for inserting an external sensor



•
  Stainless steel chamber with rounded corners for easier cleaning



•
  Anti-tip supports and shelves completely removable



•
  Door switch to facilitate loading and unloading of samples


Technical data

•
  Capacity: 50 liters



•
  Maximum shelf load: 15 kg



•
  External dimensions (W x D x H): 690 x 640 x 635 mm



•
  Internal dimensions (W x D x H): 400 x 310 x 410 mm



•
  Weight: 54 kg



•
  Power consumption: 980 W



•
  Frequency: 50 - 60 Hz



•
  Power supply: 230 V


Performance and Safety

•
  Heating time at 150°C: 20 minutes



•
  Temperature variation at 150°C: ± 0.3°C



•
  Temperature uniformity at 150°C: ± 3°C



•
  Overtemperature safety system: electronic and electromechanical


Standard equipment

•
  Grated steel shelves:



  •
    2 shelves for models up to 50 liters



  •
    3 shelves for larger models







•
  Calibration report at 150°C with traceable Accredia reference instrument



•
  USB flash drive for data logging and transfer


Reference standards

Compliant with directives 2006/95/EC, 2004/108/EC, EN61326-1:2006, EN61010-1:2010, EN61010-2-010:2003

The TCF 50 NEW Oven is an advanced solution for laboratory temperature control, ensuring reliability, safety, and maximum efficiency.
