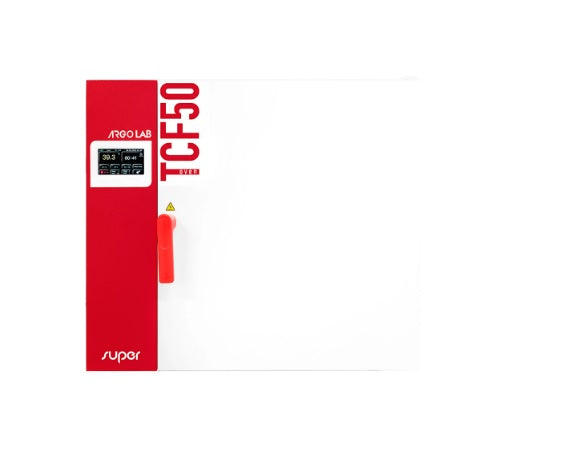

TCF 50 SUPER NEW Forced Ventilation Oven

Description

The TCF 50 SUPER NEW forced ventilation oven by ArgoLab is an advanced unit for temperature control in laboratories, equipped with a 4-inch color touchscreen display, multi-user management and specialized functions such as temperature ramps and graphical display of temperature trends. Thanks to its advanced technology, extensive data logging and the ability to export information via USB, it is the ideal solution for those seeking maximum precision and reliability.

Main features

•
  Operating range: +10°C Ta … +300°C



•
  4-inch color touchscreen display for an intuitive interface



•
  Advanced programming:



  •
    8 programmable programs with 8 steps each



  •
    Single-step basic program



  •
    Multi-step program up to 64 steps







•
  Adjustable ventilation at three levels:



  • High = 100%


  • Medium = 75%


  • Low = 50%






•
  Data logging and alarms:



  •
    Up to 200,000 values storable



  •
    Data download via USB flash drive



  •
    Alarm and operation history







•
  Advanced functions:



  •
    Temperature ramps for specialized applications



  •
    Graphical display of temperature trends



  •
    Multi-user management with three authorization levels






Safety and performance functions

•
  Simultaneous display of all operating parameters



•
  Visual and acoustic alarms that can be silenced by the operator



•
  Digital timer: from 1 minute to 99 hours and 59 minutes, with continuous operation



•
  Delayed start to program the start of the heating cycle



•
  Safe temperature function for sample protection



•
  Safety class 3.1 (DIN 12880): fluid-expansion maximum temperature controller


Structure and Design

•
  Ø 5 mm pass-through hole for inserting an external sensor



•
  Stainless steel chamber with rounded corners for easier cleaning



•
  Anti-tip supports and shelves completely removable



•
  Door switch to facilitate loading and unloading of samples


Technical data

•
  Capacity: 50 liters



•
  Maximum shelf load: 15 kg



•
  External dimensions (W x D x H): 690 x 640 x 635 mm



•
  Internal dimensions (W x D x H): 400 x 310 x 410 mm



•
  Weight: 54 kg



•
  Power consumption: 980 W



•
  Frequency: 50 - 60 Hz



•
  Power supply: 230 V


Performance and Safety

•
  Heating time at 150°C: 20 minutes



•
  Temperature variation at 150°C: ± 0.3°C



•
  Temperature uniformity at 150°C: ± 3°C



•
  Overtemperature safety system: electronic and electromechanical


Standard equipment

•
  Grated steel shelves:



  •
    2 shelves for models up to 50 liters



  •
    3 shelves for larger models







•
  Calibration report at 150°C with traceable Accredia reference instrument



•
  USB flash drive for data logging and transfer


Reference standards

Compliant with directives 2006/95/EC, 2004/108/EC, EN61326-1:2006, EN61010-1:2010, EN61010-2-010:2003

The TCF 50 SUPER NEW Oven is the perfect choice for those who need a precision unit with advanced temperature control features, ensuring reliability, safety and energy efficiency.
