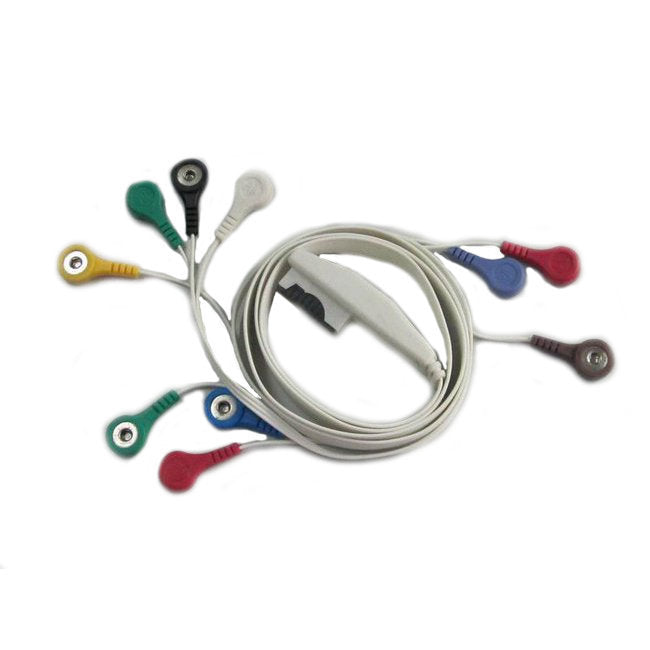

The ECG patient cables for telemetry with connection to MORTARA H12 H12+ X12 X12+ Clip from the FIAB brand are designed to ensure excellent performance and safety during cardiac monitoring. These cables are compatible with various MORTARA equipment and are protected from defibrillator discharges, making them ideal for use in complex clinical environments.

Main features of the ECG patient cable for telemetry

The telemetry patient cable features a EURO version Clip connection, ensuring a stable and secure connection. The total length of the cable is 1,200 mm +/- 50 mm, offering optimal flexibility for various clinical applications.

Clip colors and identification

• Red: C1


• Yellow: C2


• White: C3


• Brown: C4


• Black: C5


• Purple: C6


• Black: N


• Red: R


• Yellow: L


• Green: F

High-quality materials

The materials used in the ECG patient cables are selected to ensure durability and reliability:

• Metal Connector: Nickel-plated brass with plastic coating


• Metal Clip Attachment: Brass coated with plastic


• Conductors: Copper 0.08 mm² 7 strands, Ø 0.05 mm


• Outer Insulation of Conductors: Plastic material


• Appearance of Conductors: Flat cable with 10 terminations

Packaging and storage

The ECG patient cable is supplied in a single primary package in a PE heat-sealed bag – non-sterile, and a sales package in a cardboard box. To ensure maximum quality, it is recommended to store the product at a temperature between 0°C and +50°C, with a relative humidity between 20% and 80%. The product shelf life is 60 months from the production date indicated on the package.

Compliance and safety

The telemetry patient cable complies with Directive 93/42/EEC (D.L.46/97) and is classified as a Class I device. Furthermore, it meets the safety standards CEI EN 60601-1, CEI EN 60601-1-2, and CEI EN 60601-2-25, thus ensuring safe and reliable use in the medical field.
