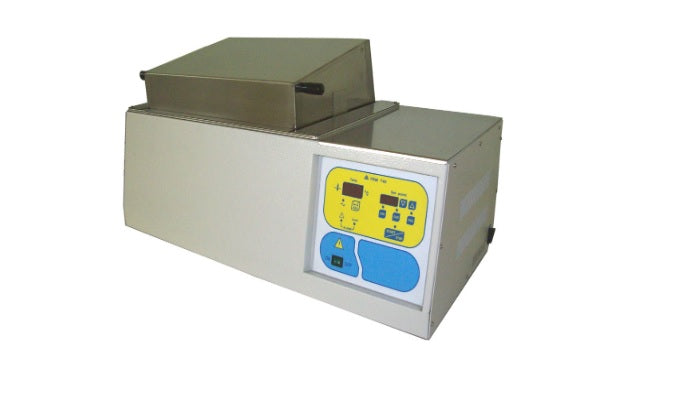

The Thermostatic Water Bath model 740 from the ASAL brand is an essential tool for chemical, industrial, and pharmaceutical laboratories due to its advanced performance and precision in temperature management. This device is designed to ensure reliability and safety in daily operations, making it an ideal choice for multiple applications.

Main Features

The thermostatic water bath model 740 is equipped with microprocessor operation with HCMOS technology, allowing for precise and stable temperature management. The temperature and set point are clearly displayed on three 10 mm displays, with a resolution of 0.1°C. Temperature detection is done via a precision PT 100 thermoresistive probe, ensuring accuracy and reliability.

Advanced Features

• Three programmable channels with direct recall for flexible operation management.


• Digital calibration with an accuracy of +/- 2°C for optimal temperature control.


• Alerts for faulty probes and low liquid levels to ensure safe usage.

Robust and Safe Construction

The external construction of the device is made of steel with acid-resistant powder coating, while the internal tank is molded from Aisi 304 stainless steel, suitable for holding various types of test tube racks or other containers. The splash protection level is IP 54, making the device suitable for difficult working conditions. Additionally, it features a bright main switch for intuitive use.

Technical Specifications

• Temperature detection with precision PT 100 thermoresistive probe


• Temperature indication on 3 displays of 10 mm, resolution 0.1°C


• Three programmable channels with direct recall


• Digital calibration +/- 2.0°C


• Alarm indication for faulty probes and low water level


• Splash protection level IP 54


• Internal useful dimensions of the tank: 440 x 300 x 180 mm, Volume 23 liters


• Total dimensions: 770 x 400 x 380 mm


• Weight: 15 Kg

Electrical Data

• Power supply: 230 V - 50 Hz


• Consumption: 1500 W


• Protection fuses: 2 x 10 AF (5 x 20) mm


• Network connection socket: 16 A

Usage Recommendations

WARNING: It is recommended to use only deionized or descaled water to avoid damage to the device. Avoid using distilled water.

The thermostatic water bath model 740 is the perfect solution for those seeking precision, safety, and reliability in a single device. Thanks to its advanced features and robust construction, it can meet the highest demands of industry professionals.
