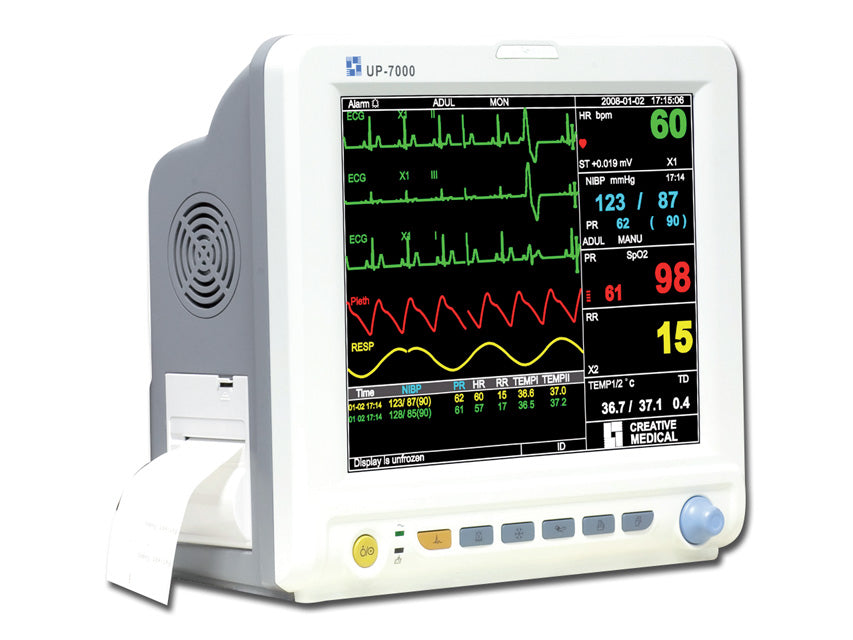

The UP7000 multiparameter patient monitor from the GIMA brand is an advanced and comprehensive instrument for monitoring patients' vital signs. Equipped with an integrated printer, this device is able to monitor ECG, RESP, SpO2, Temperature and PR, offering a reliable and accurate solution for hospitals, clinics and outpatient facilities.

Main Features

The UP7000 monitor is designed to provide accurate, real-time data thanks to its numerous advanced functions:

• 12.1'' high-resolution TFT color display: Clear and detailed visualization of vital parameters.


• 3-channel ECG amplification: Detailed analysis of arrhythmias and the ST segment.


• Data storage: Up to 800 groups of data and 24 hours of ECG traces, as well as 480 hours of data and graphs for all parameters.


• Simultaneous 7-channel ECG display: Complete and simultaneous monitoring.


• Protection against defibrillation interference: Safety and reliability during use.


• Adult/child measurement mode: Adaptability for different age groups.


• Visual and audible alarms: Immediate notifications for out-of-range parameters.


• Integrated rechargeable battery: Autonomy and ease of use.


• Integrated thermal printer: Immediate printing of monitored data.

Technical Specifications

NIBP Monitoring

• Measurement method: Oscillometric


• Measurement range:




• Adults: 40~255 mmHg (Systolic pressure), 10~220 mmHg (Diastolic pressure), 20~215 mmHg (Mean arterial pressure)


• Children: 40~200 mmHg (Systolic pressure), 10~110 mmHg (Diastolic pressure), 20~165 mmHg (Mean arterial pressure)

TEMP Monitoring

• Measurement range: 25.0°C~45.0°C ± 0.2°C


• Response time: = 150 sec

SpO2 and pulse monitoring

• SpO2 measurement range: 35%~100%


• PR measurement range: 30 bpm~240 bpm ± 2 bpm

ECG Monitoring

• Heart rate measurement: ± 0.4 mVp ~ ± 5 mVp


• Heart rate measurement range: 20 bpm ~ 250 bpm

RESP Monitoring

• Measurement method: Thoracic impedance


• Measurement range: 0 rpm ~ 120 rpm


• Accuracy: ± 5% or ± 2 rpm (whichever is greater)

Other Technical Features

• Power supply: 100 ~ 250 Vac, 50/60 Hz


• Consumption: <80 VA


• Display: 12.1-inch color TFT LCD


• Alarm mode: Visual-audible alarms


• Network port: Ethernet

Standard Equipment

• Adult SpO2 probe


• Adult NIBP cuff


• Temperature probe


• ECG cable


• Rechargeable battery


• Printer


• Power cable


• Disposable electrode


• Dust cover


• Manual (English, Italian)
