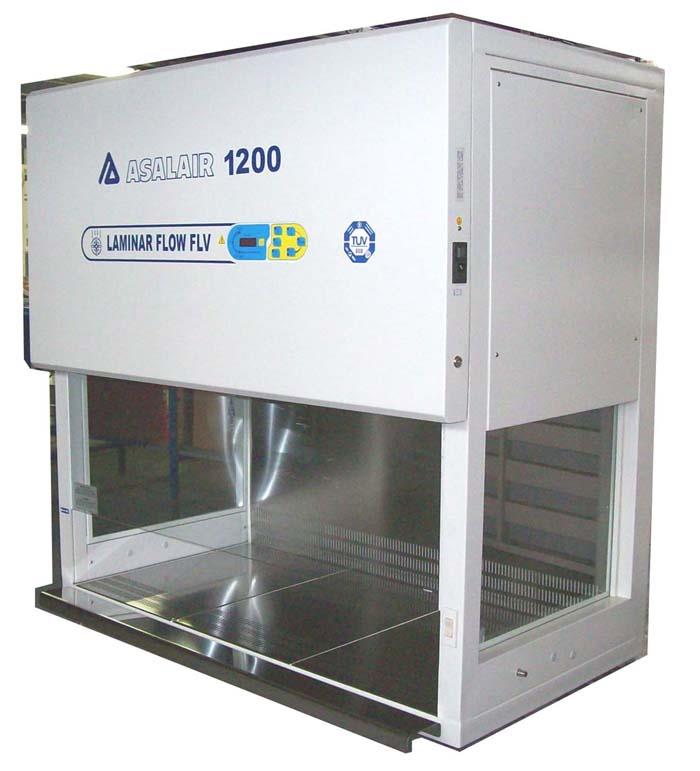

Vertical Laminar Flow Hood FLV 1200

Product Description:
The vertical laminar flow hood FLV has been designed and manufactured to allow handling in a sterile environment, guaranteed by the HEPA filter, of various materials. This device is ideal for applications in microbiology, bacteriology, serology, and for handling cell cultures and non-pathogenic materials.

Main Features:

•
  Guaranteed Sterile Environment: Thanks to the HEPA filter, the hood ensures a sterile working environment in ISO class 5, ideal for handling sensitive materials.



•
  Operator Protection: The front flow or barrier, along with the adjustable motorized front screen, ensures excellent operator protection during operations.



•
  Vertical Laminar Flow: The unidirectional and turbulence-free airflow carries contaminants away from the work area, maintaining a sterile environment.



•
  Quality Materials: Constructed from satin-finished AISI 304 stainless steel, with side and front panels in tempered glass, it ensures robustness and ease of sterilization.



•
  Optimal Lighting: Side LED lights provide uniform illumination without creating shadow zones.



•
  Electronic Control: The airflow speed is managed by a control panel with a microprocessor, allowing precise adjustments.


Filter Options:

•
  HEPA Filter: Tested according to C.E.N. 1822 standards, with an overall efficiency of 99.995% (class H14), producing a sterile airflow in ISO class 5.



•
  ULPA Filter (optional): Tested according to C.E.N. 1822 standards, with an overall efficiency of 99.9995% (class U15), for sterile airflow in ISO class 4.


Technical Specifications:

•
  Working Area Dimensions: Vary depending on the model, for example, the FLV 1200 model has a working area of 1225x640x650 mm.



•
  Laminar Flow Speed: 0.40 m/s



•
  Front Barrier Flow Speed: 0.45 m/s



•
  Total Air Volume / Exhausted: 1155 / 350 m³/h



•
  Weight: 180 Kg (for the FLV 1200 model)


Regulations and Compliance:

•
  Compliant with European Directives: 2014/35/EU (low voltage), 2014/30/EU (electromagnetic compatibility), 2006/42/EC (machinery directive), 2011/65/EU (RoHS).



•
  Technical Standards: EN 61010-1, EN 61326-1, WEEE 2012/19/EU, CEI 66.5, CEI 62.25, U.S. FEDERAL STANDARD 209/E, ISO 14644.1.


Additional Features:

•
  Motorized Front Screen: The opening is electronically adjustable, with an optimal working opening of 200 mm.



•
  Modular Work Surface: Sectioned for easy sterilization and cleaning.



•
  Low Operating Noise: Noise level ≤ 60 dB, thanks to the silent and adjustable fan.


Conclusion:
The vertical laminar flow hood FLV offers a complete solution for operations in a sterile environment, ensuring protection for both the operator and the product. The combination of high-quality materials, an advanced control system, and cutting-edge filtration options make it an excellent choice for laboratories requiring a sterile and safe environment.
