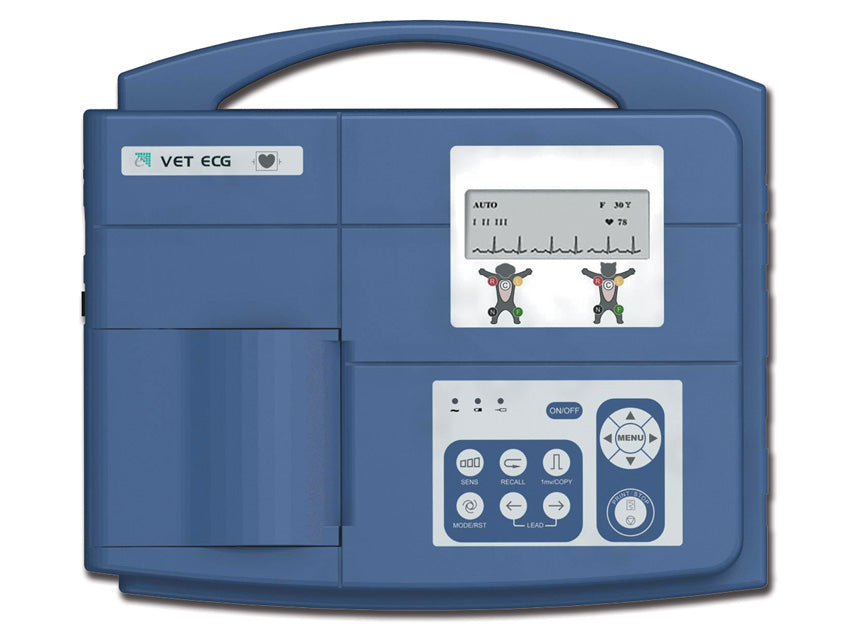

VE-100 - 1-channel ECG - ECG FOR VETERINARY


The VE-100 is a high-quality veterinary electrocardiograph designed to provide precise and reliable results in veterinary medicine. Ideal for veterinary clinics and hospitals, this device offers fully digital signal management, ensuring accurate acquisition of animal cardiac data.

Main Features of the VE-100

The VE-100 features an LCD display that clearly shows waveforms and configurable parameters, facilitating data reading and interpretation. The high-resolution thermal printer allows for clear and detailed printouts, essential for accurate diagnosis.

• Fully digital signal management


• LCD display with waveforms and configurable parameters


• High-resolution thermal printer


• Built-in rechargeable battery for 3 hours of use (AC/DC power)


• Complete digital filter to avoid baseline drift and EMG interference


• Automatic baseline adjustment to optimize print position


• Selectable auto/manual function

Detailed Technical Specifications

The VE-100 is designed to offer excellent performance with the following technical specifications:

• Leads: standard 7 channels


• Acquisition Method: Single


• Frequency Response: 0.05 Hz ~ 150 Hz


• Sensitivity: 2.5, 5, 10, 20 (mm/mV)


• Input Impedance: >10 MO


• Filters:



  • EMG Filter 35 Hz (-3dB)


  • AC/DFT Filter 50/60Hz (-20dB)






• Recording Mode: Auto/manual


• Safety Standards: IEC I/CF


• Power Supply:



  • AC: 100-115-220-240 V, 50/60 Hz


  • Built-in rechargeable lithium battery 14.4 V


  • More than 3 hours of continuous operation powered by battery






• Thermal Paper: 5 mm x 30 m


• Print Speed: 25/50 mm/s (± 3%)


• Weight: 2.3 kg (battery included)


• Screen: LCD 192 x 64 pixels


• External Input/Output:



  • Input: =100 kO; Sensitivity: 10 mm/V ± 5%


  • Output: =100 kO; Sensitivity: 1 mm/V ± 5%






• Communication Interface: RS232

Standard Equipment Included

The VE-100 comes with complete equipment to ensure immediate and hassle-free use:

• 5-lead veterinary ECG cable (Ø 4 mm, banana connector, IEC)


• Veterinary clip electrodes (set of 5, for ECG cables Ø 3-4 mm)


• 1 roll of paper


• Rechargeable lithium battery (2200 mAh)


• Manual in: GB, IT - FR, ES, DE on request

Why Choose the VE-100?

Choosing the VE-100 means opting for a reliable, high-quality veterinary electrocardiograph designed to meet the specific needs of veterinary clinics. Its advanced technology and comprehensive features make it an indispensable tool for animal cardiac diagnosis and monitoring.
