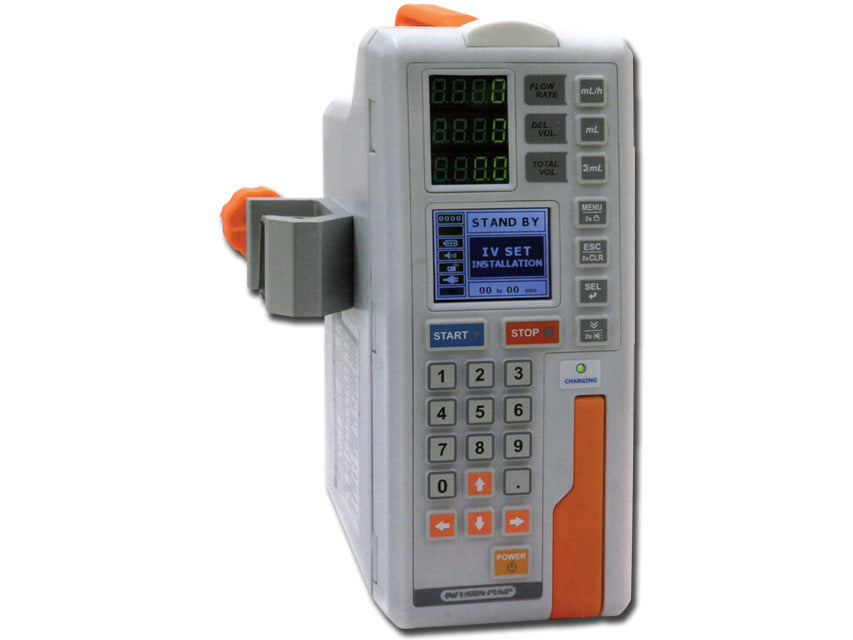

INFUSION PUMP

The pump uses the peristaltic method and ensures
high flow accuracy; it is compatible with infusion sets from different pumps
thanks to ultrasonic air bubble detection.

Its silicone keypad
makes it easy to set procedures.
The FND and color LCD display
shows complete, easy-to-read information.

Infusion conditions such as K.V.O. (vein occlusion prevention function), purge
speed and bolus can be set by the operator.

Supplied
complete with battery.

Main features

Lightweight
and compact. Only 3.5 kg, compact design and easy to use.

- Compatibility
with 4 major brands of infusion sets: BD (A122), TERUMO (TSPA 200L), KOREAN
VACCINE (1 AND 2), ARIES.
Each pump can be calibrated for more than 9 different
infusion sets
Flexible flow setting and ease of use: the flow adjustment range
1~1000 ml/h, 0.1~999.9 ml/h is
available for a wide
range of calibrations; moreover, the numeric keypad is easy to use when setting
flow/volume.
- Identifies the exact dosage for the patient and proceeds
with administration
- Easily identifiable alarms: notifies errors
and emergency situations with an LED light and audible signal, simultaneous
visual and sound alarm system.
- Remaining battery charge indication: an LED
indicator shows the battery level and warns when it is necessary to proceed
with recharging.
- Anti-vein occlusion function: when the preset
value is reached, conversion to the low
flow speed of 3 ml/h occurs (when the pump is set to 15, 19, 20 drops/ml) or 1 ml/h (setting to 60 drops/ml).
The process occurs
automatically in order to prevent the risk of vein occlusion
due to blood coagulation.
- Ultrasonic detection of the
air bubble
- Also suitable for veterinary use

Technical
features
• Flow adjustment range: - 1 ~ 1000 ml/h (infusion interval
1 ml) - 0.1 ~ 999.9 ml/h (infusion interval 0.1 ml)
• Flow volume
error margin ±5%
• Infusion volume limit range:
1 ~ 9999 ml
• Total estimated volume range: 1 ~ 9999 ml
•
K.V.O range (vein maintenance function)
• 1 ml/h ~ 10 ml/h adjustable

• Pump technology: peristaltic method
• Dimensions: (W
x D x H) 100 x 190 x 250 mm
• Weight: 3.5 kg
• Rapid flow
volume (Purge): 1~1000 ml/h adjustable
• Paramedic call
DC24V, 0.5A
• Alarm features
• Air in the
line, occlusion, flow error (free flow), door open, K.V.O (infusion
completion),
standby, low battery indication, alarm, device malfunction
(CPU error), empty container (with optional drop sensor)


Special features
• Key lock, data storage,
remaining time, alarm repeat, open system, K.V.O, purge, bolus, occlusion
level,
recall previous settings
• Power supply: AC 110V / 230V, 50/60Hz
and DC9.6V
• Internal source adapter DC24V / 1A
• Maximum
power consumption 15VA
• Protection level against electric shocks

• Class II b, internal source device, type CF
• Water
resistance level: IPX2
• Battery type: Ni-Cd
•
Battery life: 4 hours (infusion at 125 ml/h)
• Battery charging time:
minimum 6 hours
• Battery useful life: 6 months
